Thermostatic control system: This product is equipped with a heating tube on the left side of the working chamber and a blower device on the right side.

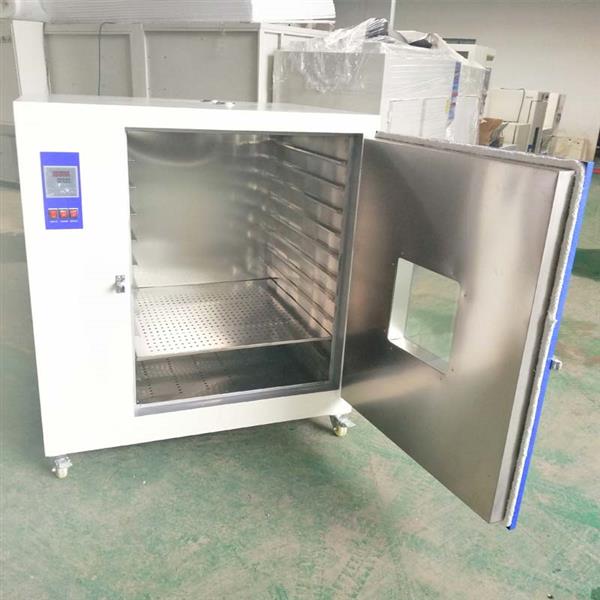

Furnace structure and materials:
1: The inner box is made of 1.0mm galvanized sheet or 201 stainless steel;
2: The outer box is processed and formed using a 1.2mm thick A3 iron plate;
3: Insulation material: Glass fiber environmentally friendly high-temperature cotton is used, with an insulation thickness of 80mm;
4: Door edge sealing: High-temperature resistant silicone is used for tight sealing.
Security system:
1. Overtemperature protection (alarms and cuts off heating power in case of overtemperature) - (optional);
2. Control circuit short circuit and overload protection device.
Application scope: Semiconductor, chip, PCB/FPC, electronic and electrical engineering, automobile and motorcycle, aerospace, rubber, plastic, metal, etc.
Note: Our company offers a diverse range of styles. Welcome to inquire by calling: 13172457248 (also available on WeChat)
