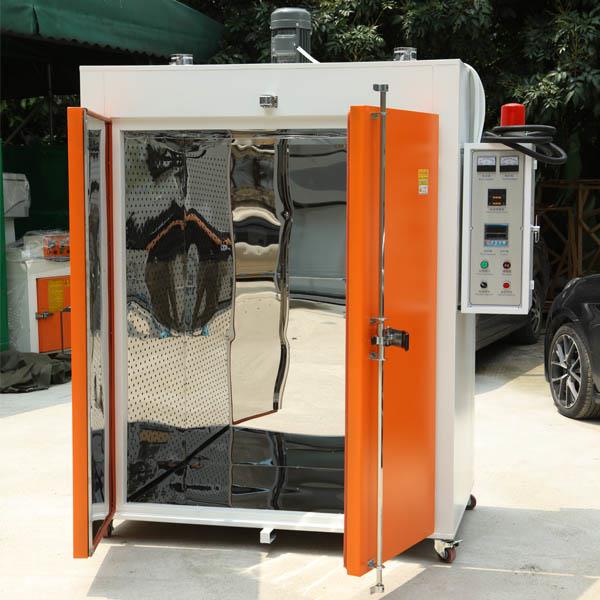

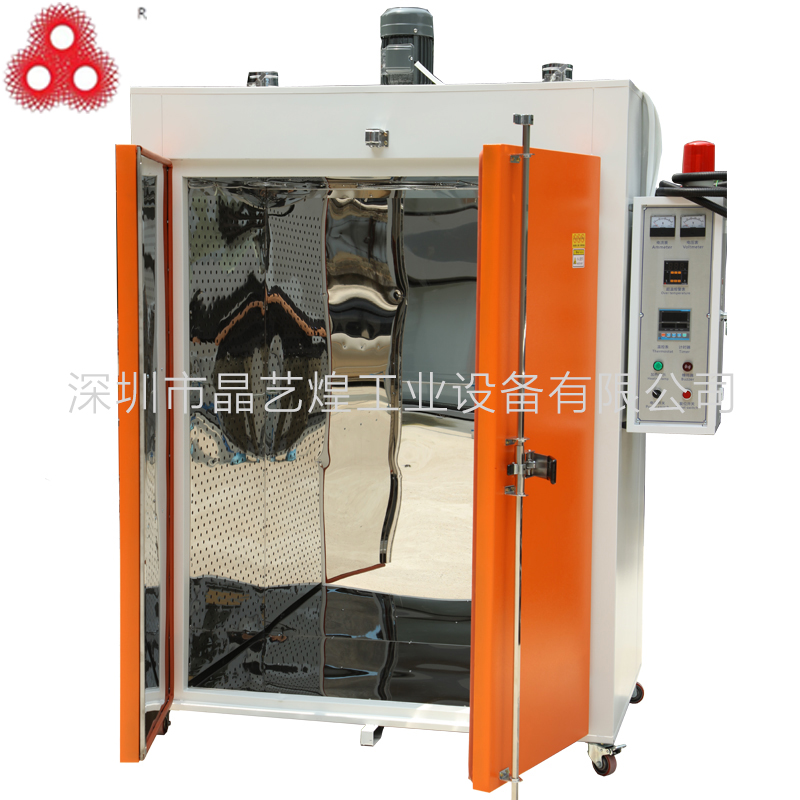

JYD160 - Air-circulating Constant Temperature Oven

inner box

The inner box is made of 2.0mm stainless steel plate

outer box

Process and shape a 1.2mm thick A3 iron plate;

In stock?

is

Process Characteristics

1. Insulation: Uses CSR 100K environmentally friendly high-temperature rock wool with a thickness of 120mm. The well-designed insulation enables long-term high-temperature operation, offers long service life, and is easy to replace, maximizing green, energy-saving, and environmentally friendly performance.


2. Door seal:Adopts high-temperature resistant asbestos rope, combined with container-type tightening adjustable door locks to ensure good sealing and prevent heat loss.


3. Fan & motor system: Equipped with a reinforced shaft high-temperature motor and a high-efficiency multi-blade impeller.


4. Over-temperature protection:Features an over-temperature alarm and automatic heating power cut-off protection (cuts off heating power when over-temperature occurs).


5. Electrical protection timing:Includes short-circuit and overload protection for control circuits, phase protection, and leakage protection. Equipped with manual and automatic timing switching; timer adjustable from 0 to 999 minutes with constant temperature timing function.


6. Heating elements:Uses high-temperature resistant stainless steel finned dry-burning heating tubes (made with imported resistance wire and high-temperature quartz sand). The heating tubes are installed on both sides inside the oven chamber.

结构特点

Here is the English translation of the specifications you provided:


1. **Construction:** The inner chamber is made of 2.0mm thick stainless steel plate, and the outer casing is formed from 1.2mm thick A3 steel plate. The space between the outer casing and the inner liner is insulated with rock wool, with an insulation layer thickness of 120mm.


2. **Surface finish & temperature control:** The entire machine casing features high-temperature electrostatic spray coating, which is corrosion-resistant and easy to clean. Equipped with an RKC70 temperature controller, LED digital display for setting, PID auto-tuning and correction, along with a 0.6-core thermocouple and contactor output. This ensures high temperature accuracy, stable operation, low failure rate, and easy maintenance.


3. **Energy saving:** Utilizes heat reflection and heat conduction principles, combined with a preheated air duct design, achieving energy savings of over 20%.


4. **Air circulation & heating efficiency:** Unique air duct and heating design enable faster hot air circulation, higher drying efficiency, and effective energy conservation.


5. **Safety & control features:** Equipped with automatic constant temperature control, automatic exhaust, over-temperature timed alarm and power cut-off, leakage protection, and other functions.


6. **Door design:** Features a well-designed door with good sealing performance, low surface temperature, wear resistance, resistance to deformation, and long service life.


7. **Temperature precision & drying uniformity:** Precise temperature control, excellent heat retention, and uniform drying of materials.

Scope of application

PCB, FPC, TP, optoelectronics (LED/LCD), new energy, chips, semiconductors, integrated circuits, thin film buttons, cameras, mobile phones, communications, hardware, plastics, touch screens, computers, displays, capacitors, ICs, electronic components, new materials, chemical industry, medical, electronic components, lenses, cameras, module dispensing, post-printing curing, and baking in industries such as IC, IGBT, lithium batteries, crystal oscillators, battery pole pieces, and connectors.
